How Tooling Impacts the Quality of Your Plastic Extrusion
Consistent plastic extrusion quality depends on more than process control. Even with stable temperatures, controlled screw speeds and high-quality materials, extrusion performance ultimately depends on the tooling shaping the molten plastic.
In plastic extrusion, the die influences material flow, wall thickness, dimensional stability and how the profile behaves as it cools. When extrusion dies are poorly designed, worn or inadequately maintained, quality issues can develop that cannot always be corrected through process adjustments alone.
Understanding how tooling for plastic extrusion affects the finished profile, can help manufacturers prevent defects, reduce scrap and achieve more repeatable production.
Below are several common tooling-related extrusion problems and the engineering approaches used to address them.
How Die Design Impacts Plastic Extrusion Performance
Problem: Warping and Bowing of the Extruded Profile
Warping, bowing and other profile distortions are often associated with uneven or insufficient cooling. However, the design of the extrusion die can also play a significant role.
Die geometry that creates uneven wall thickness or unbalanced material flow can introduce internal stresses into the profile. As the material cools, those stresses may cause the extrusion to twist, bow or move out of tolerance.

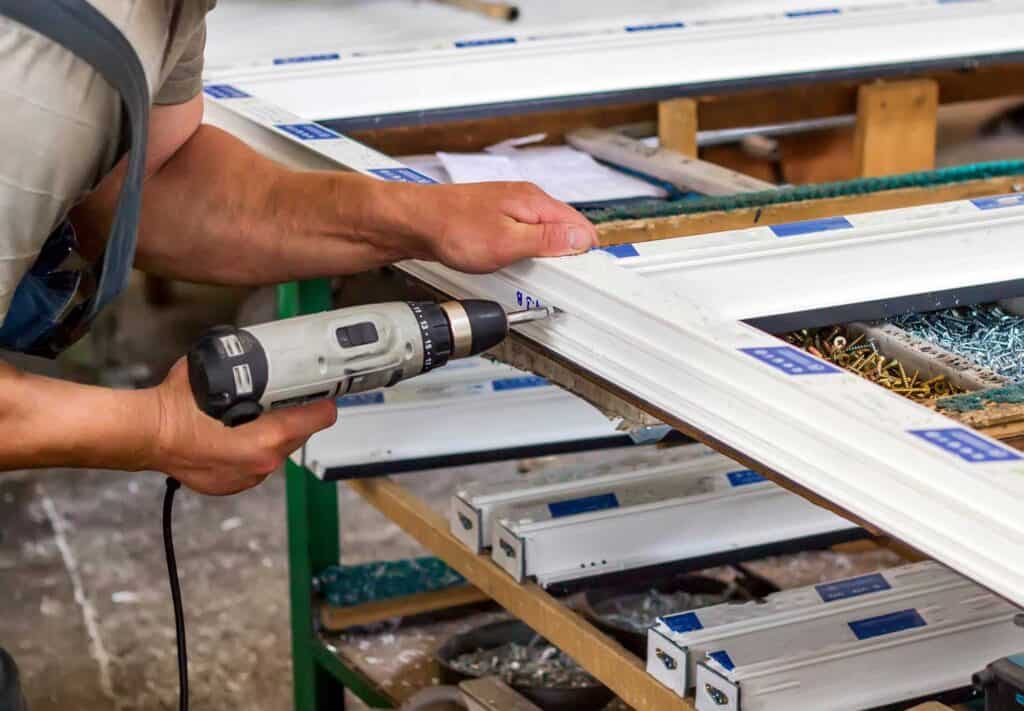

When this occurs, the finished profile may no longer fit properly within its intended assembly, potentially creating installation challenges, poor fit or part-performance issues.
Solution: Engineering-Driven Custom Tooling
Working with an extruder like Climatech that provides engineering support can help identify potential design issues early in the development process. By evaluating profile geometry, material behavior and application requirements up front, engineering teams can design tooling that promotes balanced material flow and more consistent wall thickness.
This helps reduce internal stresses as the profile cools and improves dimensional stability after production. Properly engineered die design can play an important role in preventing warping and bowing before they result in costly quality or assembly issues.
Problem: Profile Expansion After Exiting the Die
Once molten plastic exits the extrusion die, it begins to relax. In some materials, this causes the profile to expand — a phenomenon commonly known as die swell.
Excessive or inconsistent die swell can create dimensional variation and push finished profiles outside of specification.
Several tooling factors can influence this behavior, including:
- Die land length
- Flow balance
- Profile geometry
- Material behavior and rheology
- How the tooling accounts for material relaxation after exiting the die
If these factors are not properly considered during die development, a profile may leave the tooling differently than expected and become difficult to control downstream.
Solution: Tooling Designed for Predictable Material Behavior
Effective extrusion die design accounts for how the material will behave both inside the tooling and immediately after it exits.
By designing tooling that anticipates elastic recovery in the material, extruders can achieve more predictable dimensions and tighter tolerances — reducing scrap, rework and downstream adjustment.
Problem: Poor Surface Finish
A rough, scratched or uneven surface finish can have several possible causes.
Process-related conditions such as contamination, improper temperatures or cooling issues may contribute. However, when surface defects begin appearing on an established profile that has previously run successfully, the condition of the extrusion tooling should also be evaluated.
Residue buildup, scratches, nicks, burrs or other damage to the die surface can transfer directly onto the finished extrusion.
Beyond appearance, tooling damage can potentially affect profile dimensions, wall thickness and overall part consistency.
Solution: Ongoing Die Inspection and Maintenance
Extrusion dies are production tools and require ongoing care.
Repeated manufacturing runs can eventually introduce buildup, wear or minor surface damage. Without regular inspection and maintenance, these conditions can continue to appear in the finished profile.
A disciplined tooling maintenance program may include:
- Cleaning dies after production runs
- Removing material buildup or residue
- Inspecting surfaces for nicks, burrs or scratches
- Polishing or buffing worn areas when appropriate
- Inspecting critical dimensions
- Properly storing tooling between production runs
Routine maintenance helps preserve surface quality, dimensional consistency and the useful life of the tooling.
Why In-House Extrusion Tooling is Key to Quality
For custom plastic profiles, tooling development is closely connected to the extrusion process itself.
Having engineering, tooling and production teams working together allows adjustments to be made based on how the material actually processes, rather than treating the extrusion die as a standalone component.
In-house tooling capabilities can also provide greater control over:
- Die design and development
- Tooling modifications
- Maintenance and repair
- Dimensional adjustments
- Production troubleshooting
- Lead times for tooling changes
This integrated approach can be especially valuable during new product development, when several iterations may be required to move from an initial profile concept to repeatable production.
High-Quality Extrusions Start With Strong Tooling
Reliable, repeatable plastic extrusions depend on more than a well-controlled extrusion setup. Extrusion die design, fabrication and maintenance all influence surface quality, dimensional stability and long-term profile performance.
At Climatech, our plastic extrusion capabilities are supported by an in-house machine shop and engineering expertise. This allows us to maintain greater control over tooling development, modifications and die quality throughout the life of a program.
By combining custom extrusion tooling, engineering support and controlled manufacturing processes, Climatech helps customers develop profiles designed for consistent performance from initial development through full production.
Learn more about Climatech’s plastic extrusion capabilities or reach out to an expert to discuss your next custom profile application.
Frequently Asked Questions About Tooling for Plastic Extrusion
How does tooling affect plastic extrusion quality?
Extrusion tooling controls how molten plastic flows and forms into the finished profile. Die design can influence wall thickness, dimensional consistency, surface finish and how the profile behaves as it exits the die and cools.
What role does die design play in extrusion defects?
Die geometry influences material flow and profile formation. Uneven wall thickness, unbalanced flow or improper die dimensions can contribute to warping, dimensional variation, surface defects and out-of-tolerance profiles.
Can extrusion defects be fixed by adjusting the process instead of the die?
Some extrusion issues can be improved by adjusting temperature, screw speed, cooling or other process conditions. However, defects caused by die geometry, tooling damage or wear typically require tooling modification, repair or maintenance to address the root cause.
What causes warping or bowing in plastic extrusions?
Warping and bowing can result from uneven cooling, inconsistent wall thickness or internal stresses created by unbalanced material flow. Both extrusion setup and tooling design should be evaluated when diagnosing these issues.
What is die swell in plastic extrusion?
Die swell occurs when molten plastic expands after exiting the die as internal stresses are released. Excessive or inconsistent die swell can push profiles out of tolerance and is influenced by die geometry, material rheology and flow balance.
